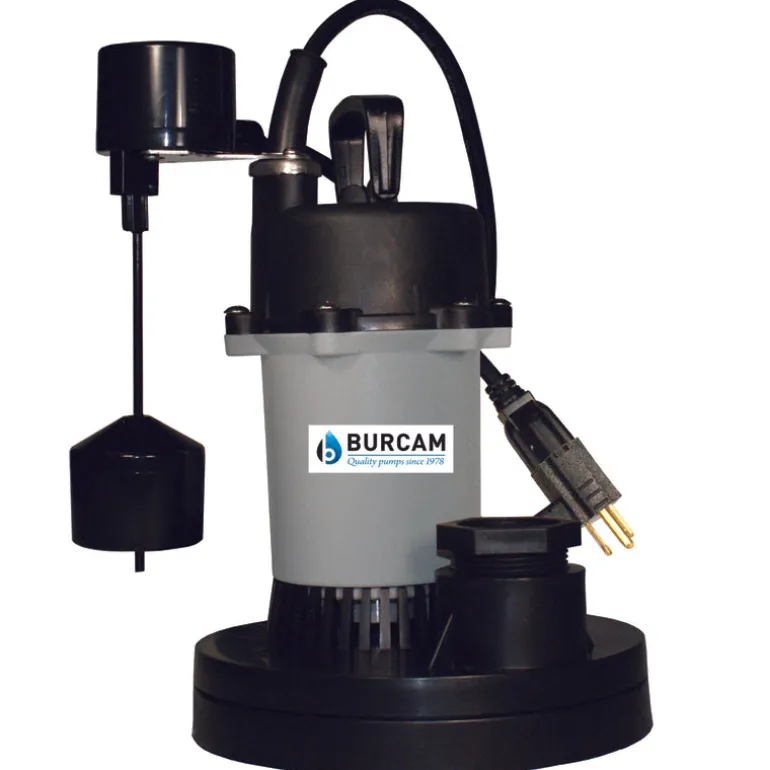

This submersible sump pump is designed for use in residential applications either in a new installation or to replace an existing upright or submersible sump pump. The 1/3HP, 115V motor includes automatic thermal and overload protection. The piggyback vertical float switch ensures automatic operation of the pump and can be used in sump basins as small as 10 in.es in diameter. The zinc-coated motor housing offers better heat dissipation and greater resistance to corrosion than aluminum. The pump body is corrosion-resistant thermoplastic. The maximum head is 18 ft. and the capacity is up to 3000 US GPH.
California residents see
- Prop 65 WARNINGS
Brand Name
Burcam
Maximum Discharge Flow
3000 gph
Housing Material
Thermoplastic
Product Type
Sump Pump
Sump Pump Outlet Diameter
1.5 in.
Pump Switch Type
Vertical Float Switch
Discharge Flow at 25 ft.
0 gph
Discharge Flow at 10 ft.
2500 gph
Agency Compliance
CSA
Discharge Flow at 20 ft.
0 gph
Height
12 in.
Maximum Feet of Head
18 ft.
Depth
25 in.
Powered By
AC
Horsepower
1/3 HP
Maximum Temperature
125 °F
Minimum Temperature
33 °F
Volts
115 V
Pump Type
Submersible
Weight (lb)
9.3
Length (in.)
8.5
Width (in.)
8.5
Height (in.)
14.1
