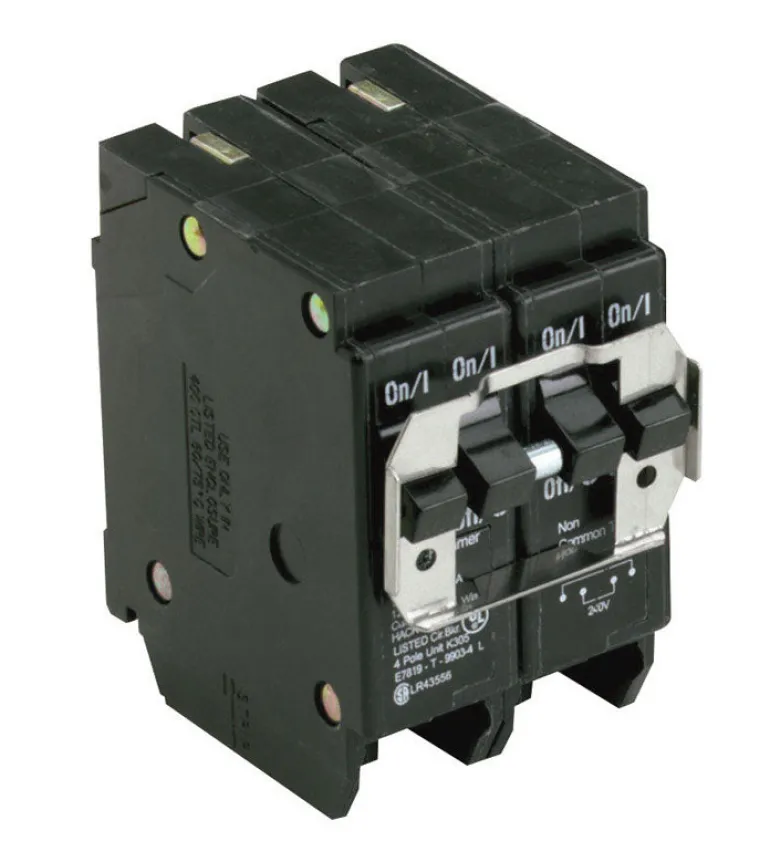

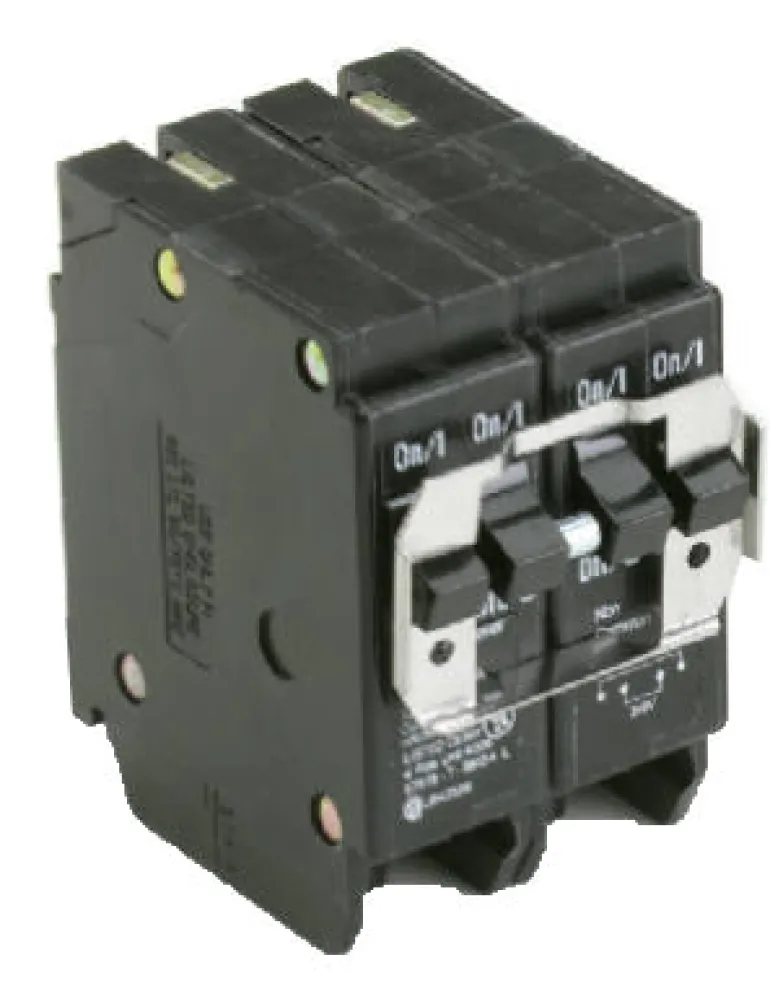

Eaton Cutler-Hammer 20/30 amps Plug In 4-Pole Circuit Breaker
$41.76
Categories: Circuit Breakers, Breaker Box And Fuses, Lighting & Electrical, Shop All Tag: Eaton
Circuit breakers protect the wires in your home from overheating referred to as an overload and fault currents referred to as short circuits. The Eaton Cutler-Hammer quadplex or quad type circuit breaker is designed to create 4 circuits in 2 spaces. This allows for 240 volt circuits. The BQ style breaker has an independent trip as well as a rejection tab feature. These breakers are designed for use in BR type load centers and should be installed only in panel positions that have notched bus stabs that accommodate the rejection clip. Also, BQ circuit breakers are UL approved genuine replacement breakers for load centers made by Westinghouse, Challenger and Bryant.
California residents see
- Prop 65 WARNINGS
Amps
20/30 amps
Sub Brand
Cutler-Hammer
Brand Name
Eaton
Number of Poles
4-Pole
Circuit Protection Type
Plug In
Product Type
Circuit Breaker
Indoor or Outdoor
Indoor
Height
3 in.
CSA Listed
Yes
Product Series
Type BR
Mounting Type
Plug-In
UL Listed
Yes
Depth
3 in.
Width
2 in.
Volts
120/240 V
Packaging Type
Boxed
Weight (lb)
1
Length (in.)
3
Width (in.)
2
Height (in.)
3.3
