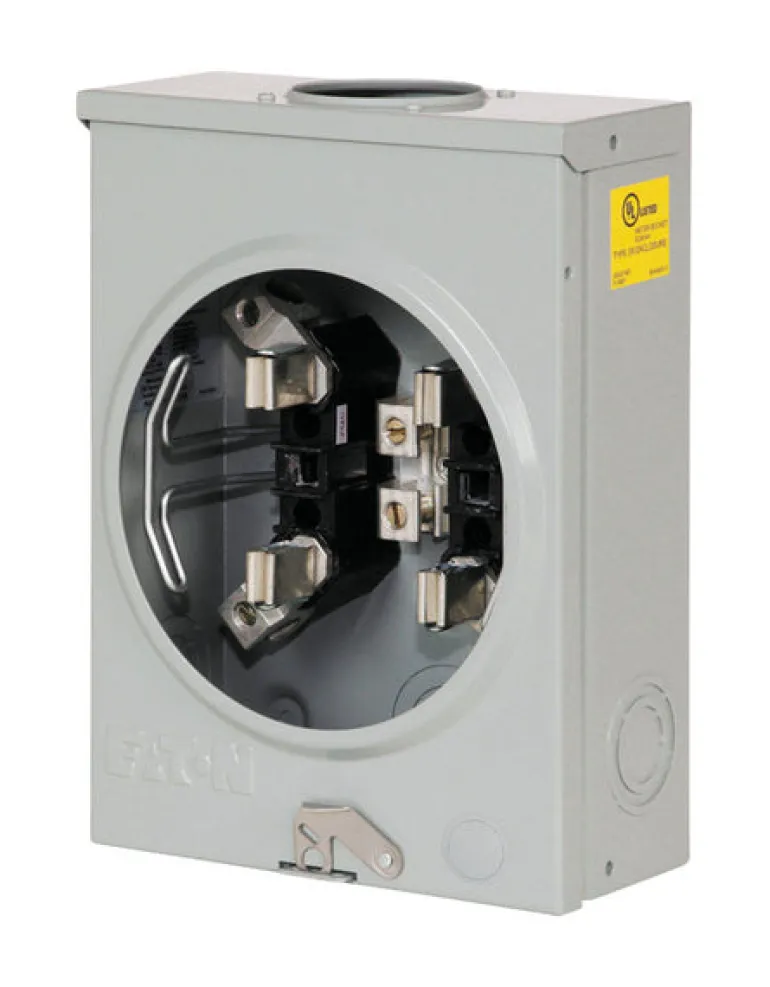

Eaton Cutler-Hammer 200 amps Ringless Overhead Meter Socket
$73.10
Categories: Circuit Breakers, Breaker Box And Fuses, Lighting & Electrical, Shop All Tag: Eaton Brand: Eaton
All Eaton sockets are rated 600 VAC maximum and either 100, 200 or 320A continuous. All have a minimum short circuit rating of 10000 RMS symmetrical amperes (watt hour meter is not included in rating). All single meter sockets are UL labeled and are supplied in surface mounted outdoor enclosures. Each utility determines meter socket requirements per local codes and we offer a variety of designs to meet virtually any local utility specification.
California residents see
- Prop 65 WARNINGS
Brand Name
Eaton
Amps
200 amps
Socket Type
Ringless
Sub Brand
Cutler-Hammer
Service Feed Type
Overhead
Product Type
Meter Socket
Nema Type
3R
Number of Phases
1
Mounting Type
Surface Mount
Packaging Type
Boxed
Indoor or Outdoor
Outdoor
Length
15.75 in.
ANSI Certified
Yes
Number of Gangs
1 gang
Breakers Included
No
Maximum Amperage
200 amps
UL Listed
Yes
Volts
600 V
Weight (lb)
9.9
Length (in.)
15.5
Width (in.)
8.75
Height (in.)
5.5
