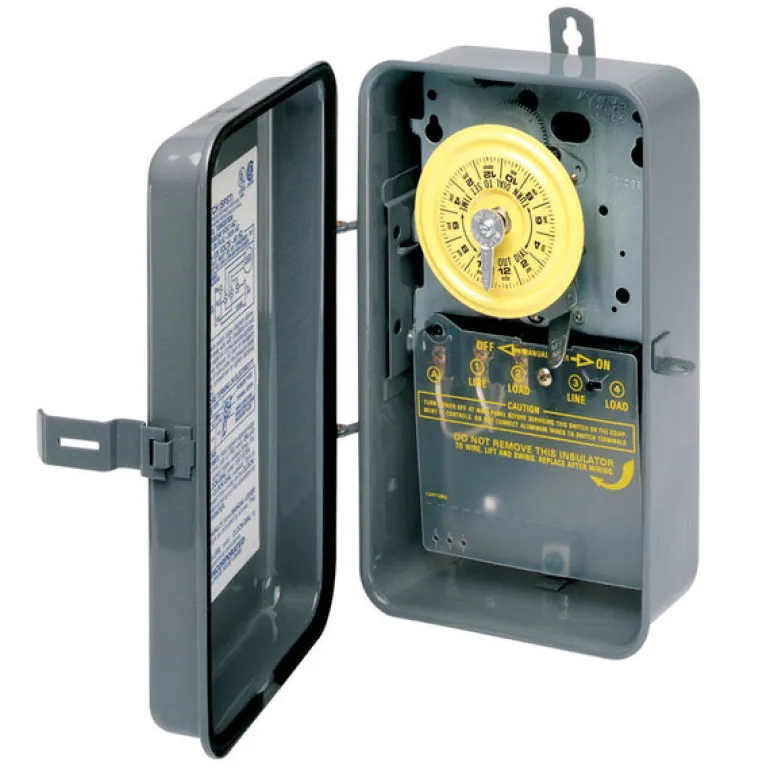

Intermatic Indoor and Outdoor Mechanical Timer Switch 120 V Gray
$77.35
The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 amp per pole and allow for up to 12 on/off operations per day. A manual override switch provides added convenience.
California residents see
- Prop 65 WARNINGSProp 65 WARNINGS WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Brand Name
Intermatic
Product Type
Mechanical Timer Switch
Color
Gray
Programmable
Yes
CSA Listed
Yes
Packaging Type
Boxed
UL Listed
Yes
Number in Package
1 pk
Watts
3 W
Indoor or Outdoor
Indoor and Outdoor
Volts
120 V
Cycles
24 hr
Depth
3-5/8 in.
Electronic Ballast
16 A
Warranty
1 year
Inductive
40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Frequency
60 Hz
Height
10-1/8 in.
Knockout Dimensions Back/Side
(1) Combination 1/2 in. – 3/4 in.
Inductive Range
40 A, 120-240 VAC, 60 Hz
Minimum Wire Size
#14 AWG
Maximum Operating Temperature
130 deg F.
Maximum Wire Size
#8 AWG
Minimum Operating Temperature
40 deg F.
Knockout Dimensions Bottom
(2) Combination 1/2 in. – 3/4 in.
Motor
2 HP, 24 FLA 120 VAC, 60 Hz;5 HP, 28 FLA 240 VAC, 60 Hz
Resistive Ranges
40 A, 120-240 VAC, 60 Hz
Wiring Option
Terminals
Number of Circuits
1
Width
6-1/2 in.
Pilot Duty Ranges
1000 VA, 120-240 VAC, 60 Hz
Switch Type
SPST
Weight (lb)
3.5
Length (in.)
4.25
Width (in.)
10.3
Height (in.)
10.3
