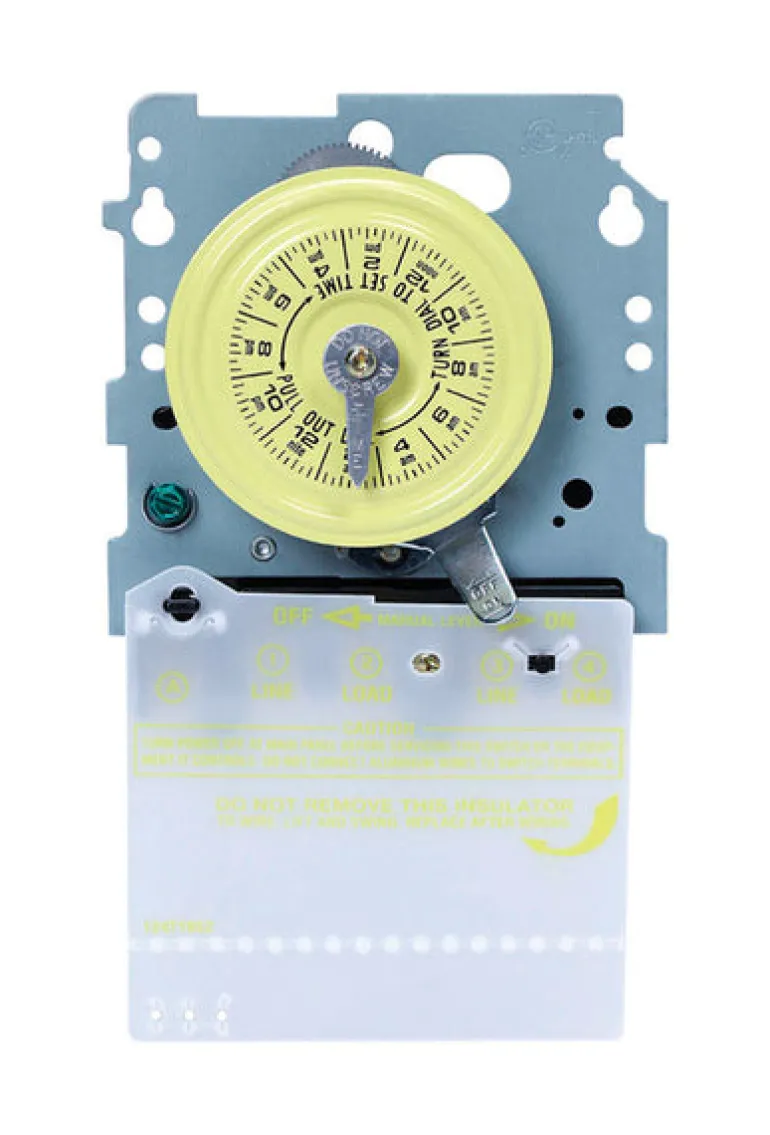

Intermatic Indoor and Outdoor Timer Mechanism 277 V Gray
$56.94
Categories: Outdoor & Living, Outdoor Lighting, Shop All Tag: Intermatic
Intermatic is dedicated to providing energy conscious solutions and this heavy duty time switch mechanism is designed for industrial, commercial and residential applications. It has the highest motor load rating in the industry, is equipped with on and off trippers and can be installed in almost all Intermatic enclosures.
California residents see
- Prop 65 WARNINGS
Brand Name
Intermatic
Indoor or Outdoor
Indoor and Outdoor
Color
Gray
Product Type
Timer Mechanism
Amps
40 amps
Packaging Type
Boxed
Number in Package
1 pk
CSA Listed
Yes
Programmable
No
Volts
277 V
Watts
3 W
Cycles
24 hr
Warranty
1 year
Heater Control Output
10 A, 250 VAC MAX, 60 Hz
Has Manual Override
Yes
Electronic Ballast
16 A
Electronic Ballast Load Ratings Ranges
16 A, 120-277 VAC
Enclosure Type
Mechanism only
Inductive Load Ratings Ranges
40 A, 120-277 VAC, 60 Hz
Minimum ON/OFF Times
1 hour
Input Voltage Range
208-277 VAC, 60 Hz
Maximum ON/OFF Operations
12
Inductive
40 A, 277 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Resistive Load Ratings Ranges
40 A, 120-480 VAC, 60 Hz
Number of Circuits
1
Motor
2 HP, 24 FLA, 120 VAC, 60 Hz;5 HP, 28 FLA , 240 VAC, 60 Hz
Pilot Duty Load Ratings Ranges
1000 VA, 120-277 VAC, 60 Hz
Switch Type
DPST
Wire Size Min
14 AWG
Wire Size Max
8 AWG
Skipper Wheel
Not Included
Tungsten Range
40 A, 120-277 VAC, 60 Hz
Temperature (operation)
-40 deg Fahrenheit to 130 deg Fahrenheit / (-40 deg C to 54 deg C)
Weight (lb)
1.4
Length (in.)
5.3
Width (in.)
8.06
Height (in.)
8.06
