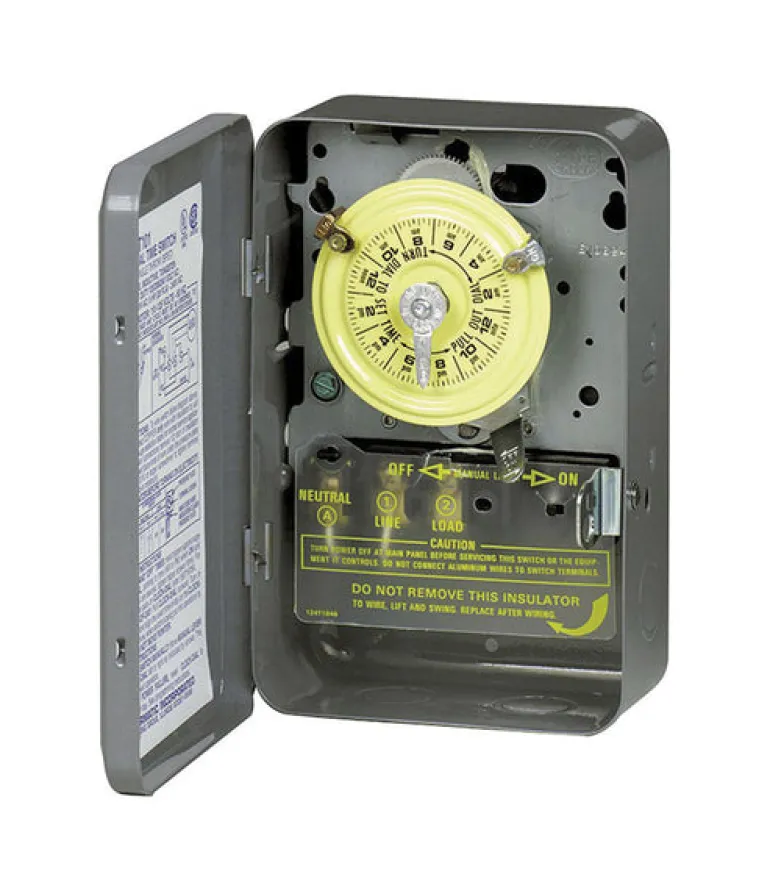

Intermatic Indoor Mechanical Timer Switch 120 V Gray
$65.60
Categories: Dimmers, Switches & Outlets, Lighting & Electrical, Shop All Tag: Intermatic Brand: Intermatic
The T100 series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 amp per pole and allow for up to 12 On/Off operations per day. A manual override switch provides added convenience.
California residents see
- Prop 65 WARNINGSProp 65 WARNINGS WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Brand Name
Intermatic
Indoor or Outdoor
Indoor
CSA Listed
Yes
Color
Gray
Programmable
Yes
UL Listed
Yes
Number in Package
1 pk
Packaging Type
Boxed
Volts
120 V
Watts
3 W
Product Type
Mechanical Timer Switch
Application
Interior Lighting, Exterior Lighting, Electric Pumps, Electric Motor Control, Various Other Electrical Loads
Cycles
24 hr
Warranty
1 year
Electronic Ballast
16 A
Enclosure Type
Indoor Type 1 Metal
Inductive
40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Inductive Range
40 A, 120-240 VAC, 60 Hz
Knockout Dimensions Bottom
(2) combination 1/2 in. – 3/4 in.
Knockout Dimensions Back/Side
(1) combination 1/2 in. – 3/4 in.
Motor
2 HP, 24 FLA at 120 VAC, 60 Hz;5 HP, 28 FLA at 240 VAC, 60 Hz
Minimum On/Off Times
1 hour
Maximum On/Off Operations
12
Number of Circuits
1
Operation Temperature
-40 degree F to 130 degree F
Resistive Range
40 A, 120-240 VAC, 60 Hz
Pilot Duty Range
1000 VA, 120-240 VAC, 60 Hz
Wire Size Maximum
No.8 AWG
Switch Type
DPST
Tungsten Range
40 A, 120-240 VAC, 60 Hz
Wiring Option
Terminals
Wire Size Minimum
No.14 AWG
Weight (lb)
2.72
Length (in.)
3.18
Width (in.)
8.06
Height (in.)
8.06
Reviews
There are no reviews yet.
