Reliance Controls 50 amps 250 V 1 space 1 circuits Surface Mount Power Inlet Box
$63.91
Categories: Circuit Breakers, Breaker Box And Fuses, Lighting & Electrical, Shop All Tag: Reliance Controls Brand: Reliance Controls

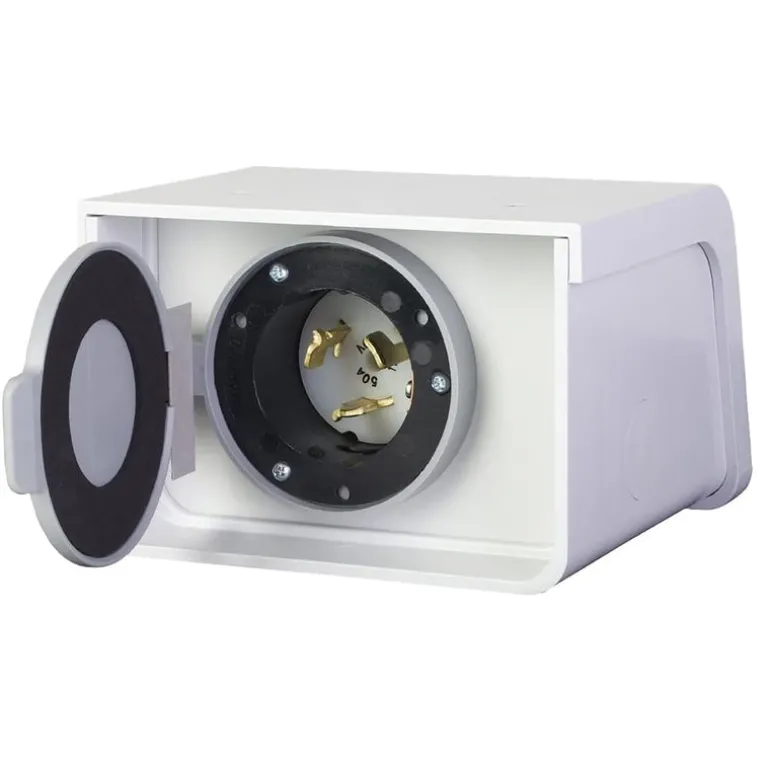

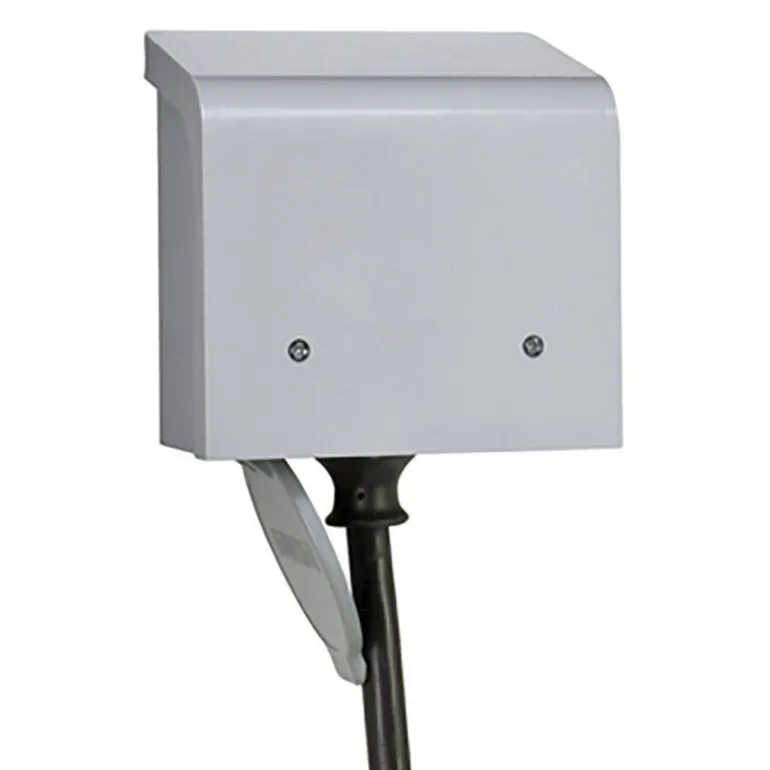

The raintight NEMA 3R PBN Series non-metallic power inlet box is designed for use with the Pro/Tran transfer switches and Panel/Link manual transfer panels and generator-ready load centers. This power inlet box must be installed outdoors in an open area where the generator is being used. Using one of the three ¾-inch knockouts (one each on the sides and back) the power inlet box can be wired directly to the transfer switch or panel. The patented design provides over 100 cubic inches of wiring space and the slide-out base allows easy 360° access to the flanged inlet.
California residents see
- Prop 65 WARNINGS
Brand Name
Reliance Controls
Amps
50 amps
Maximum Number of Circuits
1 circuits
Number of Spaces
1 space
Mounting Type
Surface Mount
Product Type
Power Inlet Box
Height
6.25 in.
Indoor or Outdoor
Outdoor
UL Listed
Yes
Depth
4.25 in.
Width
6.25 in.
Running Watts
12500 watt
Cabinet Type
NEMA 3R
NEMA Configuration
CS6375
Volts
250 V
Weight (lb)
2
Length (in.)
6.75
Width (in.)
7.5
Height (in.)
4.75
