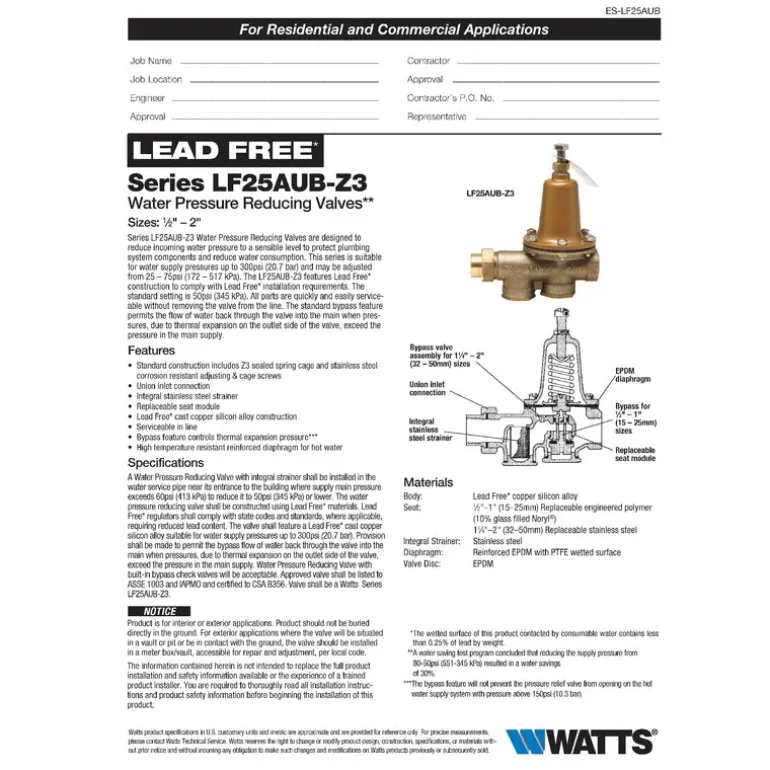

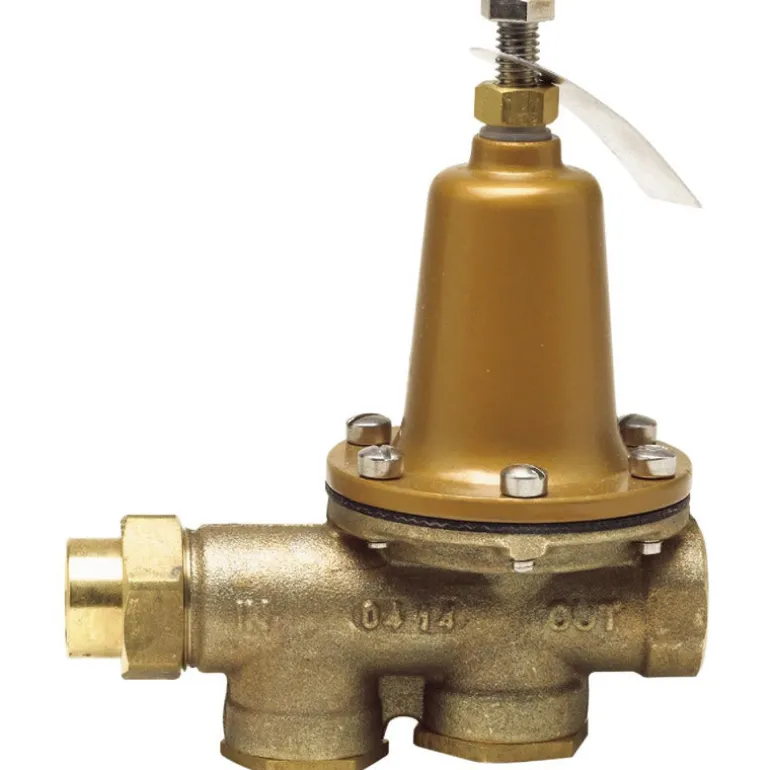

Series LF25AUB-Z3 lead free water pressure reducing valves are used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a lead free copper silicon alloy body construction, union inlet connection, integral stainless steel strainer and high temperature resistant reinforced diaphragm for hot water. The series LF25AUB-Z3 is available with a variety of end connections including threaded, solder, PEX, quick-connect and CPVC with both union and double union connections. Series LF25AUB-Z3 has an adjustable pressure range and is serviceable in-line. Maximum working pressure 300 PSI (21 bar), adjustable reduced pressure range 25 to 75 PSI (172 to 517 kPa), standard pressure setting 50 PSI (344kPa).
California residents see
- Prop 65 WARNINGSProp 65 WARNINGS This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Brand Name
Watts
End 1 Size
3/4 in.
Body Material
Brass
Product Type
Water Pressure Reducing Valve
Maximum Pressure
75 psi
Adjustable
Yes
Packaging Type
Boxed
End 2 Type
FNPT
Lead Content
Lead-Free
End 2 Size
3/4 in.
End 1 Type
Female Threaded Union
Maximum Temperature
160 °F
Minimum Temperature
33 °F
Weight (lb)
3.3
Length (in.)
3.3
Width (in.)
8.5
Height (in.)
7
