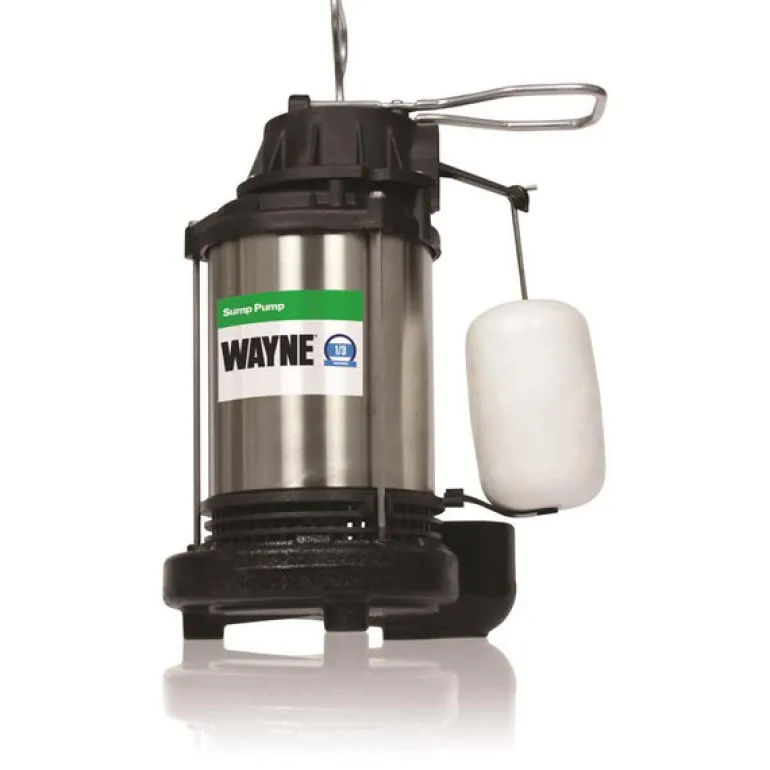

Tested to 1 million cycles; for performance that lasts, Wayne Pumps exceeds an average life of 1 million cycles. Wayne Pumps’ energy efficient motors and engineered design provide the ultra-quiet experience you won’t believe. The Hardest Working Pumps, You’ll Never Hear™. Durable epoxy-coated and rugged cast iron construction, for long life in tough sump pump applications. High performance; max. flow rate is 4600 Gallons Per Hour; 3060 GPH at 10 ft. of discharge lift. Integrated vertical float switch with solid, leak free polypropylene float for automatic operation; 9 in. On level and 4 in. Off level. No need for weep holes; Unique top suction design reduces clogging and prevents air lock condition. Engineered with upper and lower ball bearings, in sealed oil bath, for virtually silent operation. Designed with Premium John Crane Carbon/Ceramic Shaft Seals for quality that lasts.
California residents see
- Prop 65 WARNINGSProp 65 WARNINGS This product can expose you to chemicals including diethylhexyl phthalate (DEHP),which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Brand Name
Wayne
Maximum Discharge Flow
4600 gph
Housing Material
Stainless Steel
Pump Switch Type
Vertical Float Switch
Powered By
AC
Discharge Flow at 25 ft.
1800 gph
Depth
10 in.
Sump Pump Outlet Diameter
1-1/2 in.
Width
10 in.
Amps
3.7 amps
Diameter
12 in.
Discharge Flow at 10 ft.
3060 gph
Agency Compliance
UL
Maximum Feet of Head
20 ft.
Turn On/Off Level
9 in./4 in.
Height
14 in.
Horsepower
1/3 HP
Minimum Temperature
33 °F
Volts
120 V
Maximum Temperature
77 °F
Discharge Flow at 20 ft.
1200 gph
Intake
Top Suction
Product Type
Sump Pump
Weight (lb)
20
Length (in.)
10
Width (in.)
10
Height (in.)
14
